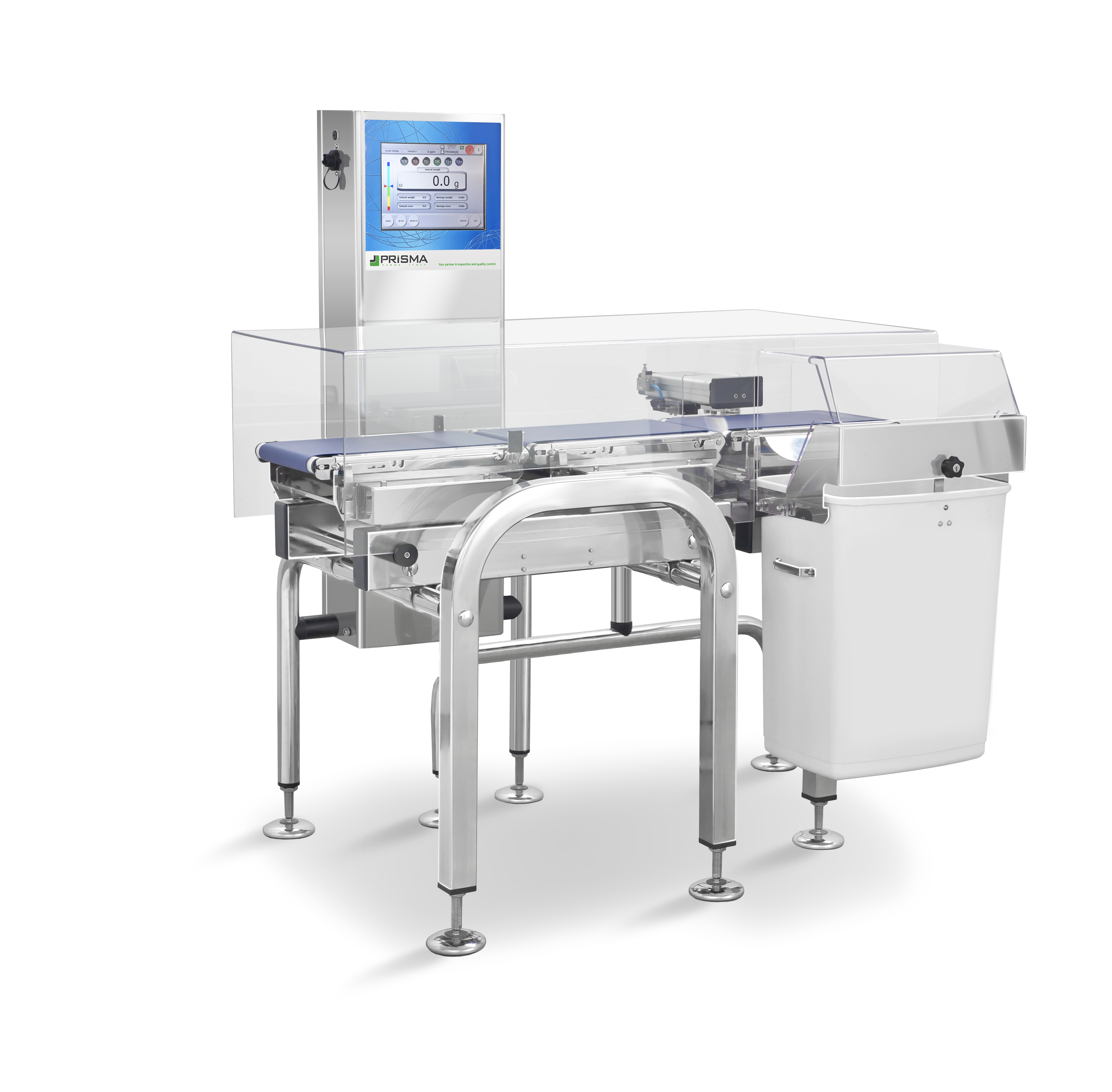

08T3 Dynamic weighing systems
Extremely versatile and functional checkweigher for small-medium format products with touchscreen display.
With a maximum capacity of 3200 g, accuracy from ± 0.5 g and a production rate of 300 ppm, the 08T3 is a high-level dynamic weighing system that ensures high performance and reliability for any weight checking requirements on a great variety of packages: trays, bags, cans, bottles, boxes of different shapes and sizes.
Made entirely of stainless steel, it has an IP65 degree of protection and high configurability, thanks to the numerous options available. MID certifiable.
Weighing range | up to 3200 g |
|---|---|
Display division | from 0,5 g |
Linear speed | up to 100 m/min |
Throughput | up to 300 ppm |
Accuracy* | from ± 0,5 g |
Pneumatic supply | 0,6 Mpa |
Air consumption (for ejection) | 1 Nl |
Power supply | 230 V 50/60Hz single-phase |
Power consumption | 700 W |
Mirror finishing of metal parts | Stainless steel IP65 |
Climatic environment | from 5°C up to +40°C non-condensing (closed) |
| |
