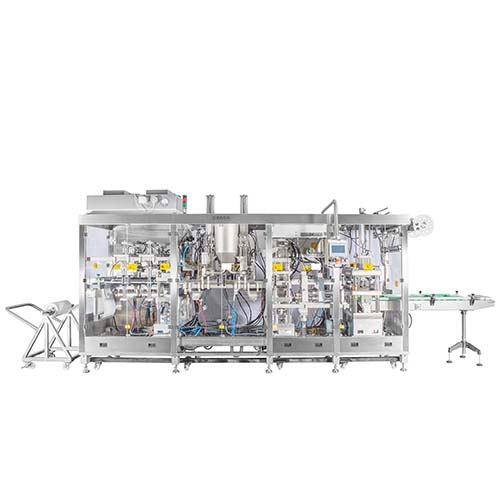

TFM - Thermoforming machine
Thermoforming machine TFM is fully automatic packaging machine designed to form cups/tubs, fill them with products as butter, processed cheese, yogurt, etc. and seal the filled cups/tubs with top foil
Main features
Machine type – Form, Fill and Seal (FFS).
Horizontal automatic thermoforming machine for forming of package, filling the packages with product and sealing the filled packages with laminated aluminum foil.
Applicable products: butter, margarine, spreads, processed cheese, cream cheese, sour cream, yogurt and other paste products.
Type of dosing – volumetric.
Productivity: 15 cycles/ min.
Sizes of package: 10 – 1000 g (depends on product, cup/tub regulated by height).
Bottom foil: PS/ PS+PE suitable for thermoforming and heat sealing.
Top foil: AL + PE Lacquered, suitable for heat sealing and pealing.
Cup/tub closing type – heat sealing.
PLC and HMI with Touch Screen.
Waste collecting system (roll type).
Stainless steel dosing nozzles.
Machine safety covers.
Foil centering device.
UV lamp.

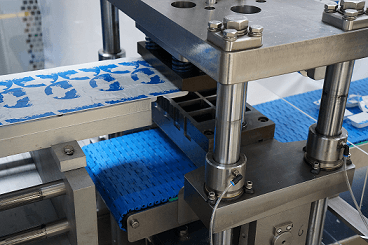

Automatic lubrication system for die cutting unit.
Place of marking (data place) – cavity forming on the cup/tub bottom.
Pre-cut cup/tub corner (optional).
Perforated cutter (optional).
