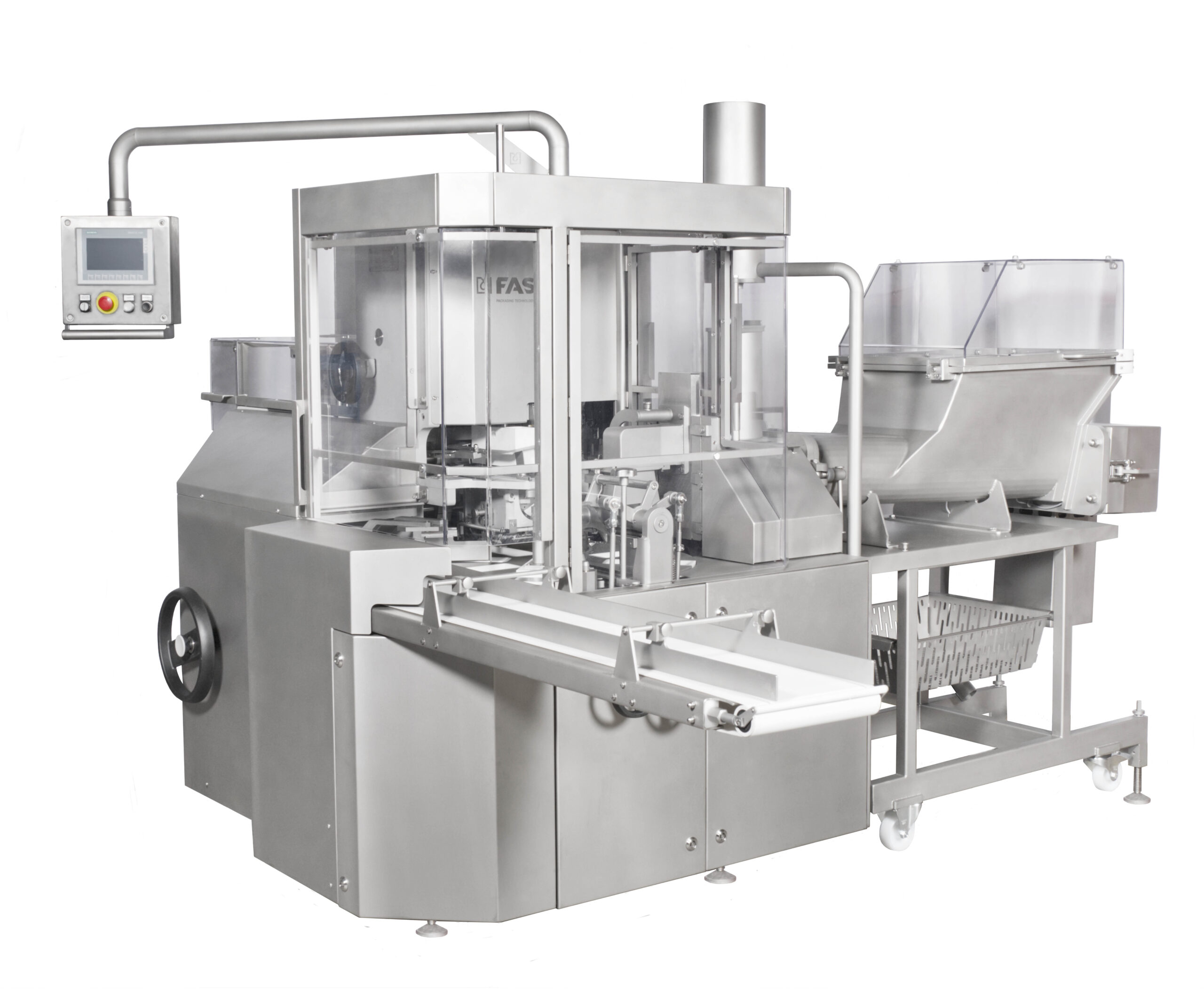

ARM-B3 - Butter filling and wrapping machine

Butter and margarine in 200–500 g portions, up to 40 packs per minute

Forming, dosing and wrapping butter portions – in one machine

The FASA ARM-B3 is a rotary, continuously operating filling and wrapping machine for butter, margarine, spreads, edible fats and curd. It doses the product volumetrically, forms the portion (200–500 g) and folds it in laminated aluminium foil, parchment paper or Ecoline with shape memory.

FASA ARM-B3: product and packaging

At a glance

Portion weight

200–500 g

Output

up to 40 packs/min

Products

butter, margarine, spreads, edible fats, curd

Portion shapes

rectangular or half-round

Packaging

laminated aluminium foil, parchment paper, Ecoline (with shape memory) · bottom folding

Feeding

hopper with 2 horizontal screws or direct feeding

Your benefits

  • Fast weight change: the portion height is set by handwheel along a marked scale. Length and width of the format stay the same.

  • Accurate dosing: volumetric with 1 % accuracy.

  • Reliable foil handling: two sensors for roll width and end of roll, foil centring with photocell, belt-driven foil shaft instead of chain.

  • Low maintenance: fully automatic lubrication, dosing unit and cladding in stainless steel.

  • Hygiene: UV lamp, safety covers, optional CIP cleaning (except dosing unit).

  • Easy operation: PLC and HMI with touchscreen, output adjustable in steps.

The ARM-B3 in your line

For repacking 10–25 kg butter blocks, FASA combines the ARM with a cutting machine, a homogeniser and a carton packer. According to FASA, such a repacking line handles up to 1,200 kg/h, depending on portion size.

SLP cutting → BH / SHG homogenising → ARM packing → DSU cartoning

FASA butter repacking line

Which machine fits your volume? Enter portion size and daily volume in the FASA machine configurator – you will see output and number of machines straight away.

Machine type

rotary, continuous operation

Products

butter, margarine, spreads, edible fats, curd

Max. output

up to 40 packs/min

Portion weight

200–500 g

Product temperature

butter +10…+14 °C, margarine +8…+14 °C

Feeding

hopper with 2 horizontal screws or direct feeding

Dosing

volumetric

Packaging material

laminated aluminium foil, parchment paper, Ecoline (with shape memory)

Folding

bottom folding

Foil roll

core Ø 70 or 75 mm, outer Ø up to 400 mm, material thickness 0.05–0.08 mm

Control

PLC and HMI with touchscreen

Accuracy

1 %

Output control

stepwise

Lubrication

automatic

Cleaning

manual or CIP (except dosing unit, optional)

Compressed air

0.4–0.6 MPa (4–6 bar), consumption 0.013 m³/min

Installed power

9 kVA with hopper · 4.5 kVA with direct feeding

Electrical

230/400 V ± 10 %, 50/60 Hz, 3-phase

Dimensions (L×W×H)

approx. 2909 × 2706 × 1960 mm with hopper · 2909 × 1623 × 1960 mm without hopper

Weight

approx. 1850 kg with hopper · 1650 kg without hopper
