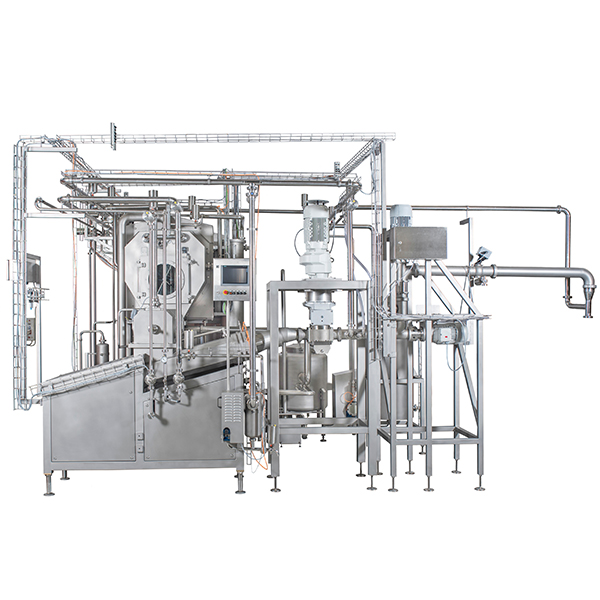

BH – BUTTER HOMOGENIZER

Homogenises chilled block butter before repacking – up to 2,000 kg/h

Robust homogeniser for chilled block butter

The FASA BH homogenises block butter before repacking and restores the properties of the butter after freezing. Its robust design also processes chilled blocks, maintenance is simple and cleaning is done by CIP. The BH works with any butter filling and wrapping machine.

At a glance

Output

up to 2,000 kg/h (depending on inlet temperature and block size)

Product

butter

Temperature

inlet 0…+10 °C · outlet +10…+14 °C

Feeding

120 kg hopper with 2 screws

Cleaning

CIP

Your benefits

  • High output: up to 2,000 kg/h.

  • Processes chilled blocks: inlet temperature from 0 °C.

  • CIP cleaning: less manual work, consistent hygiene.

  • Convenient control: PLC and HMI with touchscreen, impeller speed 400–1,000 rpm.

The BH in your line

In the FASA repacking line BH + ARM + DSU, the BH prepares the block butter. The line handles up to 1,200 kg/h.

BH homogenising → ARM packing → DSU cartoning

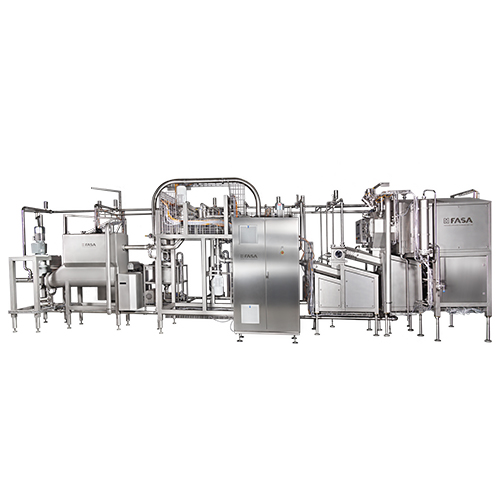

FASA butter repacking line

Which machine fits your volume? Enter portion size and daily volume in the FASA machine configurator – you will see output and number of machines straight away.

Machine type

impeller, continuous operation

Product

butter

Max. output

up to 2,000 kg/h (depending on inlet temperature and block size)

Product temperature inlet

0…+10 °C

Product temperature outlet

+10…+14 °C

Feeding

120 kg hopper with 2 screws

Screw drive

2 × 0.75 kW

Impeller drive

15 kW, 400–1,000 rpm, 8 blades

Control

PLC and HMI with touchscreen

Output control

stepwise

Cleaning

CIP

System pressure

up to 0.2 MPa (2 bar)

Compressed air

0.4–0.8 MPa (4–8 bar), only in CIP mode

Installed power

30 kVA

Electrical

230/400 V ± 10 %, 50/60 Hz, 3-phase

Dimensions (L×W×H)

approx. 1991 × 1051 × 1870 mm

Weight

approx. 740 kg
