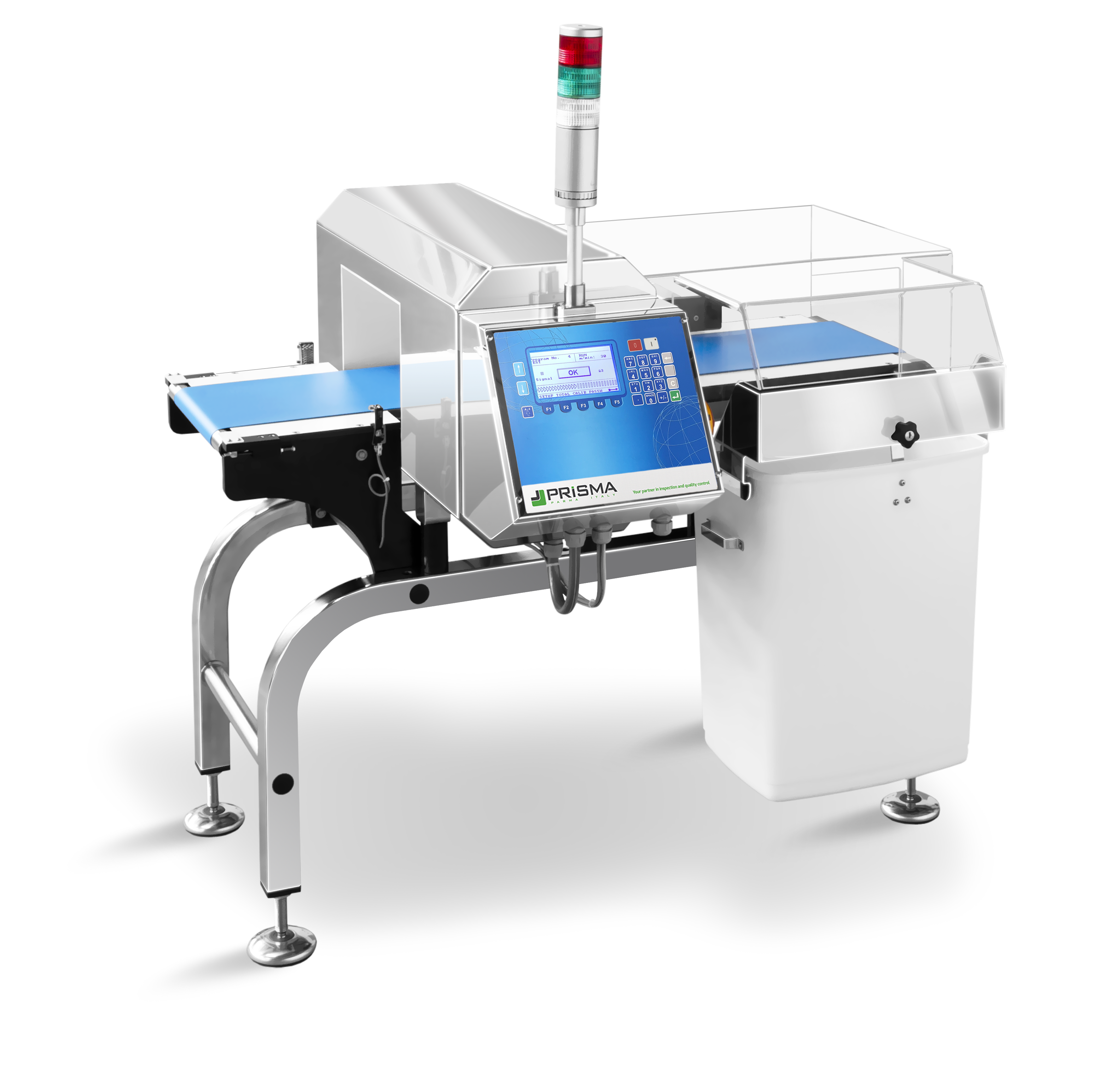

MFN11 with 60 conveyor
Inspection systems
Conveyor metal detector for food industry, ideal for inspecting small and medium sized loose and packaged products.
The multi-frequency electronics, combined with advanced functions - like self-check, automatic calibration and tracking - guarantee top level performance and fully meet the most common standards (including, among others: BRC, Marks & Spencer...) and the need to minimise false rejects.
The possibility of configuring both conveyor stop and the rejection and reject collection systems allows you to configure the machine based on the checking needs and the available budget.
A wide range of available accessories allows you to configure the machine in the most suitable way to inspect the most common formats in the food industry like: trays, sacks, bottles, boxes of different shapes and sizes with no metal parts.
The transit aperture inner ring in food-safe plastic allows the machine to be used even with loose product
Weighing range | up to 10000 g |
|---|---|
Linear speed | up to 65 m/min |
Pneumatic supply | 0,6 Mpa |
Air consumption (for ejection) | 1 Nl |
Power supply | 230 V 50/60Hz single-phase |
Power consumption | 650 W |
Mirror finishing of metal parts | Stainless steel IP54-IP65 |
Climatic environment | from 5°C up to +40°C non-condensing (closed) |
Regulations | Conformity with CE regulations and with international standards for Electrical Safety and Electromagnetic Compatibility |
