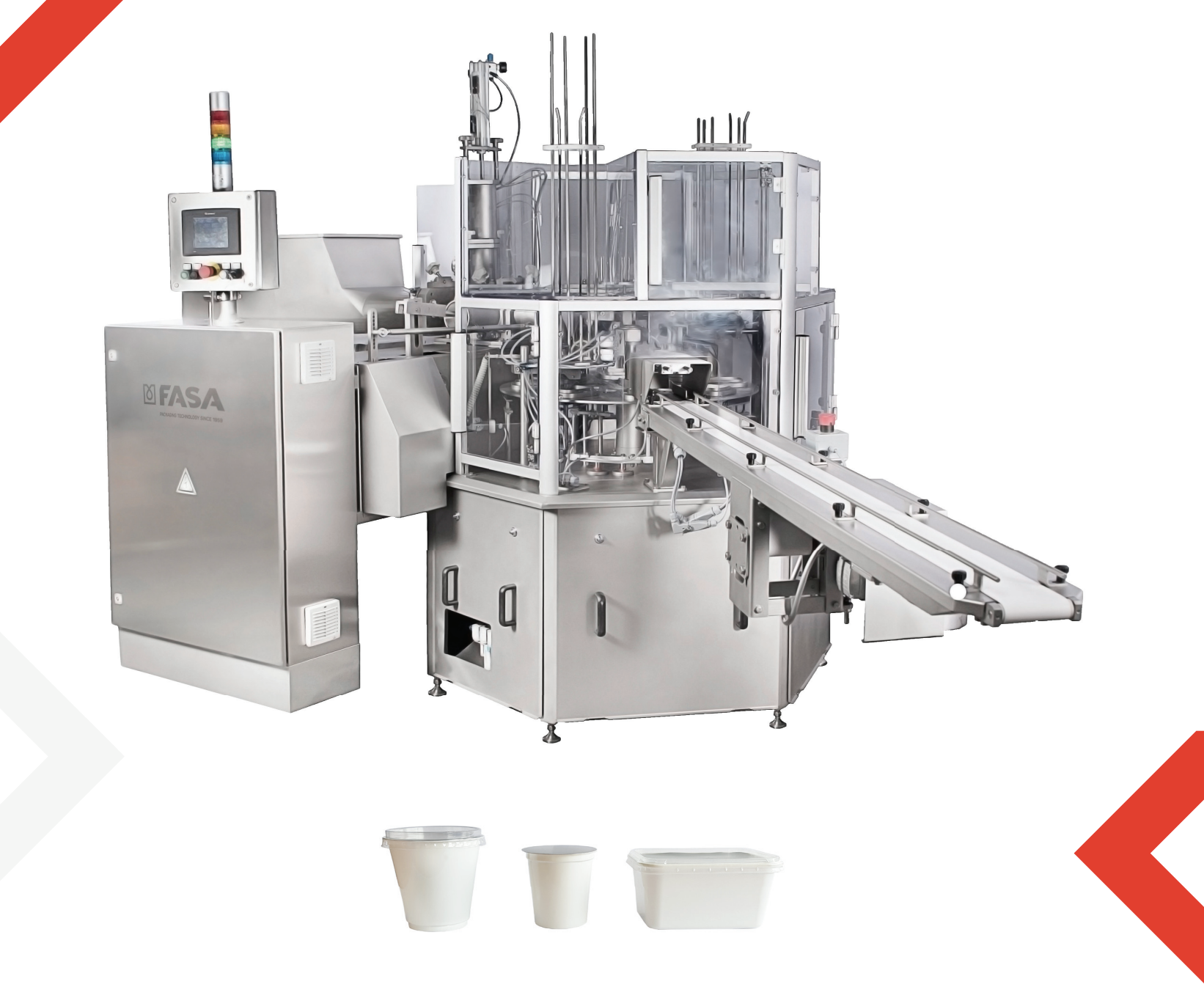

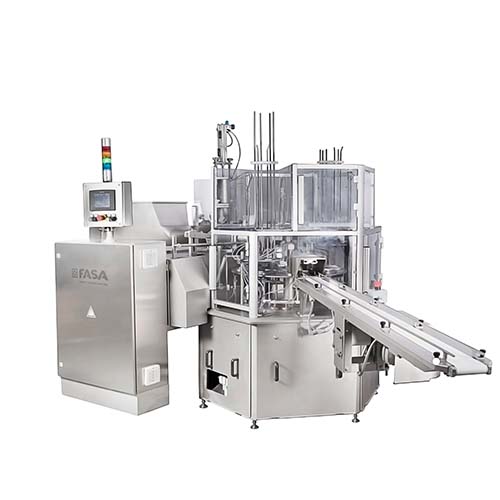

RFS 40 - ROTARY FILLING AND SEALING MACHINE
Tub or cup filling and sealing machine RFS 40 is designed for butter, margarine or spreads to be filled into pre-made containers with aluminum foil and/or lids
Main features
Tub / cup filling and sealing machine for paste-type products.
Applicable products: butter, margarine, spreads, edible fats.
Type of dosing – volumetric.
Two product feeding options: hopper with augers or direct feed from the production line via resting tube.
Sizes of package 100 – 1000 g.
Machine’s output:
100 – 250 g up to 40 portions/ min.
300 – 500 g up to 25 portions/ min.
750 – 1000 g up to 15 portions/ min.
Easy to shift between portion weight by changing the height.
Shapes of containers: rectangular, square, round.
Closing type: heat-sealing, pre-cut foil and lid covering.
Product input temperature: butter +12….+16 °C, margarine +8….+16°C.
Packaging materials: pre-formed plastic containers – PP; lid – PP; heat-sealing lid – aluminum foil.
PLC and HMI with Touch Screen.
Pneumatic compensator.
Stainless steel dosing unit.
Rotary table and machine body covers from stainless steel.
Machine safety covers in accordance with CE safety requirements.
Sensor for container detection.
UV lamp.
Possible printer (optional) – Ink jet.
